Product overview:

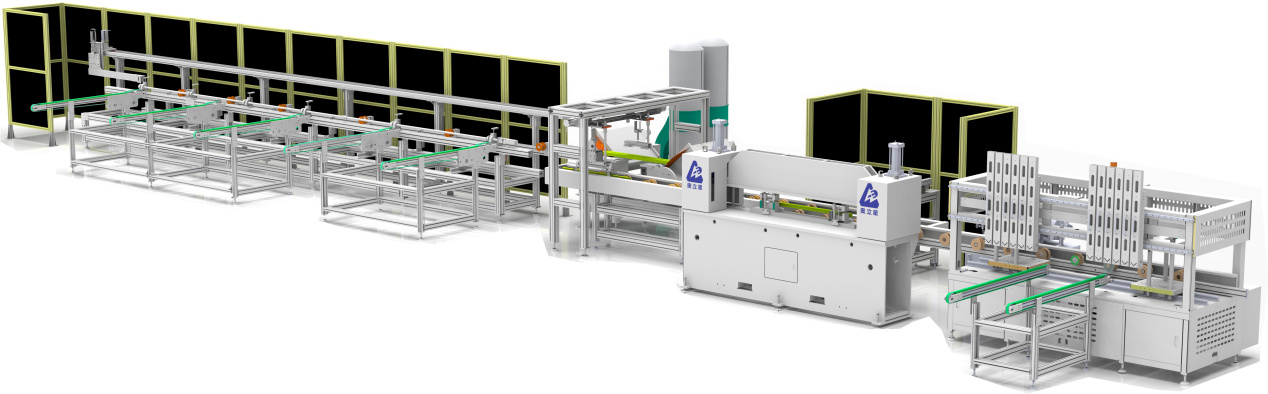

ALX-4000 photovoltaic frame automatic stamping production line is a new generation of photovoltaic frame automatic processing equipment launched by our company, which integrates automatic feeding, automatic transmission, automatic sawing, automatic stamping, automatic embossing, automatic dust removal, automatic recycling and automatic detection of aluminum profiles. ALX-4000 adopts modular design, which improves the production efficiency. The product has high precision, high automation, safety and reliability, and the performance of the whole machine is at the international level.
| Name | photovoltaic frame automatic stamping production line(long frame ) | photovoltaic frame automatic stamping production line(short frame ) | |
| Processing length range (mm) | 1600～2500 | 990～1500 | |
| Processing section range (mm) | B side width : 30-40, C side width : 10-35 | ||
| Production speed (s) | ≤3.2 | ≤3.2 | |
| Angel accuracy (°) | ±0.1 | ±0.1 | |
| Cutting length accuracy(mm) | ±0.15 | ±0.15 | |
| Qualified rate of processing | 99.8% | 99.8% | |
| Staffing (person/station) | 2.5 | 2.5 | |
| Rated Power | 20 | 20 | |
| Dimension (mm) | 21500×5000×2200 | 18500×5000×2200 |
